  • Full range:

    Horn loaded labyrinth: 1.8m ( 6” 0" ) length
    Full range driver: Custom designed
    5 inch paper cone w/whizzer, Neodimium magnet
    Foam surround
    Voice coil dia.: 25mm
    Sensitivity: 95 db/w/m at 1khz, or mean averaged from 200hz to 2khz

    Bass:

    Sealed Isobaric chamber: 15 lit. volume.
    Bass drivers: Custom designed; 2 units per enclosure
    6.5 inch paper cone
    Rubber surround
    Voice coil dia: 25 mm
    Sensitivity ( of each driver ): 91 db/w/m
    Bass module amplification: one monobloc per enclosure
    Hypex UCD digital amps
    Max. output: 180 wpc @ 8 ohms
    Level Control
    Continuously variable active crossover filter control

    System:

    Loudspeaker sensitivity: 96 db/w/m.
    Nominal impedance: 8 ohms.
    Frequency response: 36 Hz to 20 Khz.
    Minimum amplification power: 3 wpc

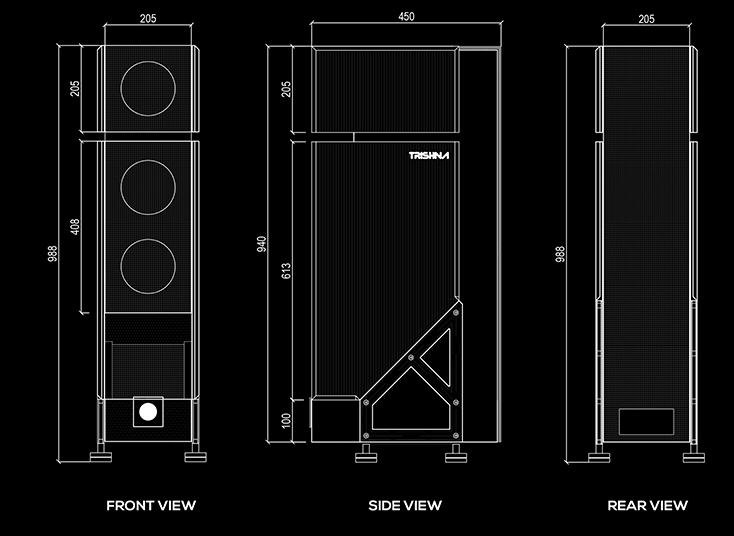

    Dimensions:

    H x D x W : 1000mm ( 3'-3 1/2" ) x 420mm ( 1'- 4 1/2" ) x 170mm ( 6.7" )
    Weight per enclosure: 22 kg ( 48 lbs )
    Shipping weight ( 2 cartons plus palette ): 64kg ( 141 lbs )
